Type FK ：Standard type

Product lineup:　｜Type FK｜Type JK｜Type BX｜Type MK｜Type BK｜

Special Products:｜Type µ｜

Regulate the amount lubricant applied to a tool’s cutting edge in exact quantities.
The number of pumps or the number of nozzles can be selected, depending on the machining condition
Application: Cutting machine, Lathe, Milling machine and so on.

Supply air	Remove dirt, oil content, and moisture
Flow rate	Over 60L/min (ANR) per one nozzle(Dia. 8mm air tube Required)
Connection	Rc1/4
Supply Air Pressure	0.4~0.7MPa
Discharge rate	0~170 mL/h per one nozzle
Hose length	Standard 3m (maximum 10m)
Supported Lubricant	Fuji BC genuine Lubricant
Lubricant Reservoir	300mL(Standard)/850mL/1900mL/4000mL
Nozzle type	Copper nozzle, Loc-Line nozzle with magnet base and so on
Pump Quantity	1~4
Lubricant Control	Pump stroke and activating pump time by frequency generator
Operating Temperature	+5~+50℃

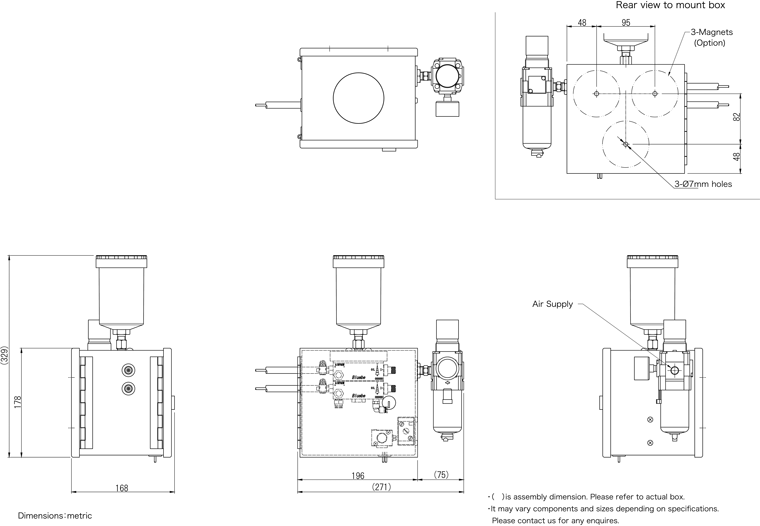

FK2 Outline dimensional drawing Please be noted FK3 and FK4 have bigger security box than FK2. Please contact us regarding as detailed outlines.
FK2 Electlic system
