Type BK: Precision Machining type

• This model stably supplies a given amount of lubricant from the tip of a nozzle to the machining point.
• The applicator supplies equally-sized lubricant droplets constantly.
• It enables you to keep a stable machining load on cutting tools and the higher quality parts can be obtained.

Specifications

Supply air	Remove dirt, oil content and moisture
Flow rate	Over 60L/min (ANR) per one nozzle
Connection	Rc1/4
Supply Air Pressure	0.4MPa ± 10%
Discharge rate	0~10mL/hour per one nozzle
Hose length	Standard 3m *Please contact us when 3m over hose length required
Supported Lubricant	Fuji BC genuine Lubricant LB-10(available as LB-6000), LB-8
Tank Capacity	400mL
Nozzle type	Dedicated Loc-Line Nozzle and Circular saw nozzle
Nozzle Quantity	1~2
Lubricant Control	Adjusting needle valve
Dimensions	114mm × 141mm × 202mm (W × D × H)
NET Weight	3kg

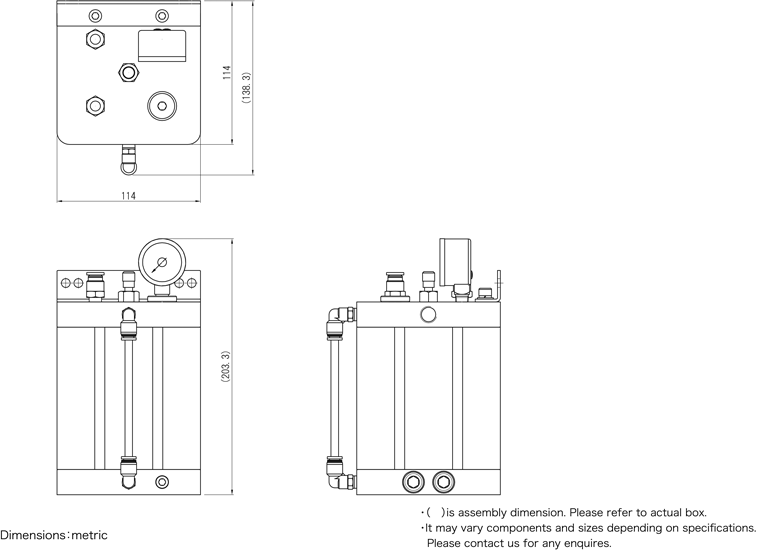

Outline dimensional drawing
