Internal applicator Selection

｜Type EB3｜Type EB3P/EB7P｜Type EB3EP/EB7EP/EB7EP(F)｜Type EB7VP｜

Type EB3EP/EB7EP (NC control/Equipped with New Machine)

• These types are designed to be installed on the machines before shipment from the machine tool maker.
• The applicators offer great flexibility for various types of equipment through manufacturer’s own programming.
• This type delivers atomized droplets of lubricant through the through-spindle piping in a Machining Center or through the coolant piping in an NC lathe.
• The lubricant is applied to the cutting edge by using a nozzle or a tool with oil hole(s).

Specifications

Supply air	Remove dirt, oil content, and moisture
Pressure	EB3EP : 0.4 to 0.7 MPa EB7EP : 0.4 to 0.8 MPa(AC type : 0.4 to 0.7 MPa)
Flow rate	Maximum 350L/min (ANR)
Lubricant Control	Automatic Control by M codes on machine interface.
Inner Pressure Control	Automatic control by pressure switch
Lubricant	FUJI BC lubricant
Capacity	1200mL
Terminal Box	20 Poles terminal box (to connect machine switch board)
NET Weight	EB3EP: 8.3kg EB7EP: 9.2kg
Discharge rate	EB3EP: 2~20mL/hour EB7EP: 2~70mL/hour
How to Mount	M6 screw bolts on upper plate

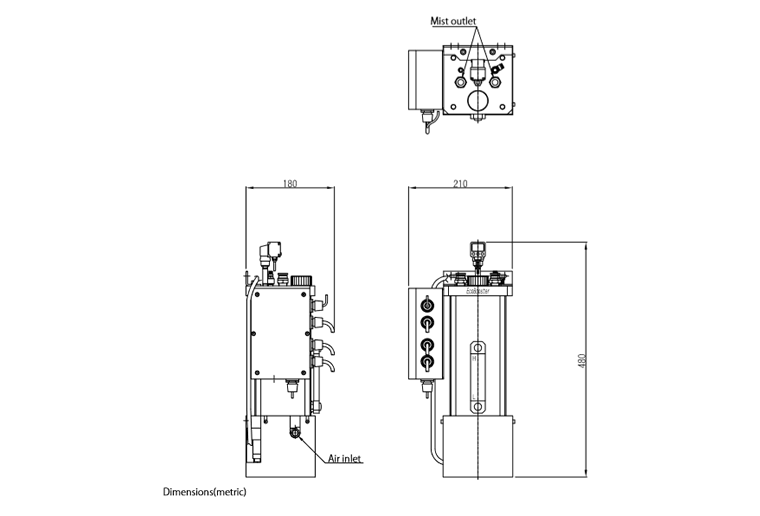

EB3EP Outline dimensional drawing

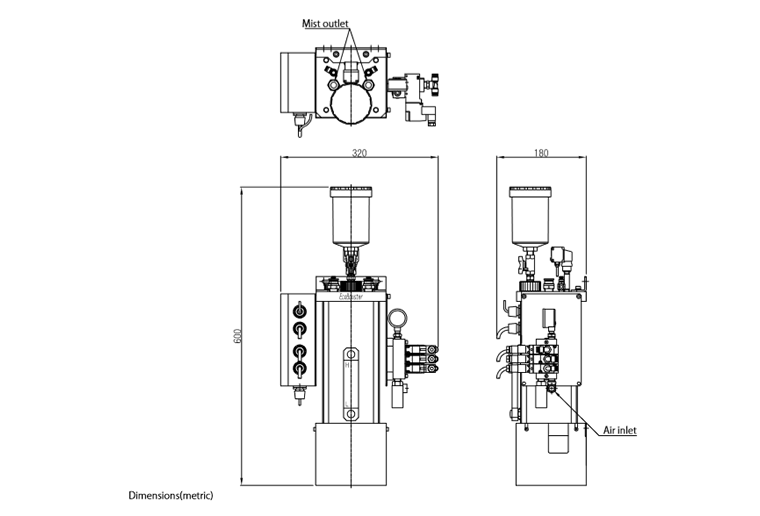

EB7EP Outline dimensional drawing

Model EB7EP(F)

• Custom-ordered special type.
• Smart and compact floor type EcoBooster EB7EP with a pressure booster boxed.

Specifications
