Type EB3 | Internal applicator Selection

Type EB3 (Manual/Retro-Fit)

Type EB3

This type delivers atomized droplets of lubricant through the through-spindle piping in a Machining Center or through the coolant piping in an NC lathe.
The lubricant is applied to the cutting edge by using a nozzle or a tool with oil holes.

Supply air	Remove dirt, oil content, and moisture
Pressure	0.4 to 0.7 MPa
Flow rate	Maximum 350L/min (ANR)
Lubricant Control	Manual control by frequency generator
Inner Pressure Control	Manual control by air regulator
Lubricant	FUJI BC lubricant
Capacity	1200mL
Terminal Box	NOT equipped
NET Weight	7.1kg
Discharge rate	2~20mL/hour
How to Mount	M6 screw bolts on upper plate

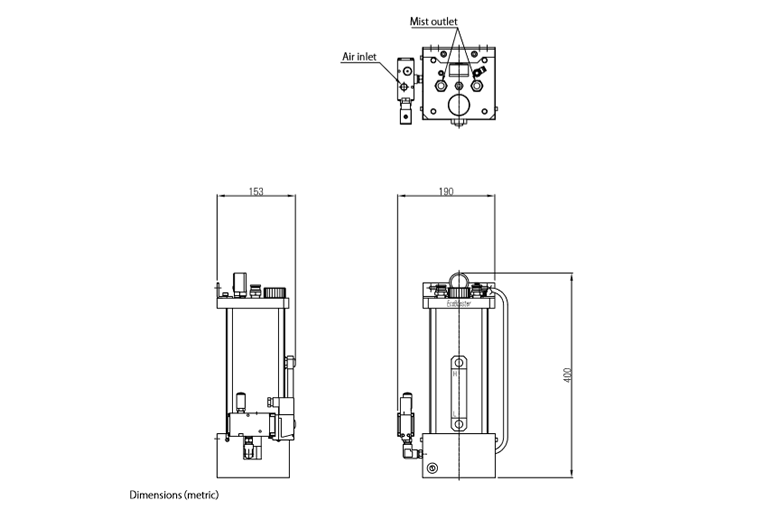

Outline dimensional drawing
